C39-40110
Quatro Straight,
1000mm |
C39-40120
Quatro Straight,
2000mm |
C39-40130
Quatro Straight,
3000mm |
|
|
|
|
|
 |
 |
 |

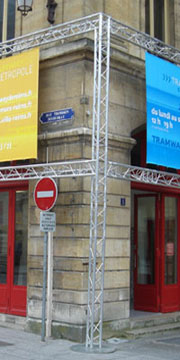

Heavy Duty Straight
Beam
Truss
C39 Quatro (Big
Coupler) |
Quatro 390 Conical KIT
(Same as Quatro
290 Conical KIT) |
C39-46390
6 ways 390 Corner
(Horizontal Load each side: 180kg) |
|
|
(= M390L
Quatro-QTL) |
|
 |
 |
 |
C39-40406
Quatro
2 way L-Angle
(Horizontal side Loading: 800kg) |
C39-40706
Quatro
3 way T-Angle
(Horizontal Load both side: 800kg) |
C39-40806
Quatro
3 way
Corner Angle
(Horizontal Load each side: 800kg) |
| |
|
|
 |
 |
 |
C39-40906
Quatro
4 way T-Angle
(Horizontal Load each side: 700kg) |
C39-41106
Quatro
4 way
Cross Angle
(Horizontal Load each side: 600kg) |
C39-41006
Quatro 5 Way T-Angle
(Horizontal Load each side: 600kg) |
|
|
|
 |
 |
 |
C39-41206
Quatro 6 Way
X-Angle
(Horizontal Load each side: 600kg) |
C39-43T14
Quatro
3
way
14º
Top Angle
(Slope Load each side:940kg) |
C39-43W14
Quatro
3 Way
14º
Slope Angle
(Slope side Loading :900kg) |
| |
|
|
 |
 |
 |
Base-800
Heavy Duty Round Steel
Base
(Ø800x16mm,
+/-75kg. with Coupler) |
Base-600S
Square Steel Base
(600x600x8mm with Half Coupler) |
Base-1100S
Square Steel Base
(110x1100x12mm w Half Coupler) |
View Detail Pictures
(30m span test)
30米跨距-產品組裝測試
|
|
Remarks :
All above 390 Angles
was made by
Ø50x3mm
Tubes. |
|
Buhnen Traversen :
Traversensystem fur schwere
Belastungen. |
|
(
C-Series
Main Tube are
3mm.) |
|
(
B-Series
Main Tube are
2mm.) |
| |
| |
|
Unser Buhnen
Truss hat ein Kantenmas von 390mm und eine EN AW6082-T6
Legierung. Die vier Aluminium Gurtrohre sind aus O50mm
und die angeschweisten Diagonal Streben sind aus O20mm
Aluminiumrohren mit jeweils 2mm oder 3mm Wandstarke
gefertigt und geben der Alu Traverse sein typisches und
bekanntes Aussehen. |
| |
| Remarks : |
|

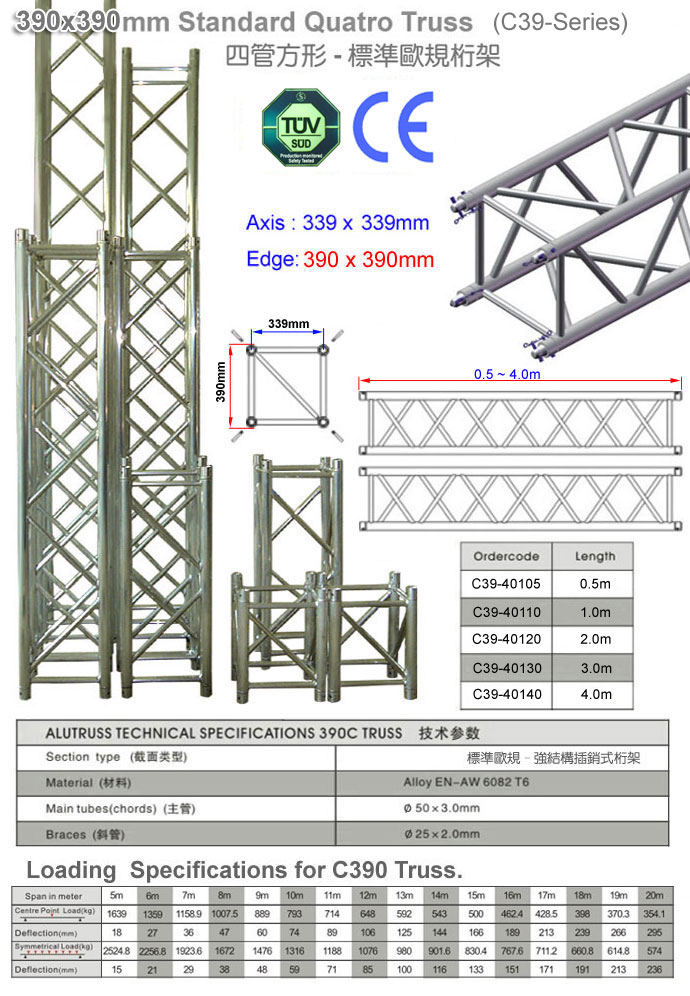

Heavy
Duty Straight 390
Truss
Weights +/- 7.8kgs
/ m .
Main
Tubes:Ø50mm x 3mm , Braces:Ø20mm
x 2mm |
|
All Length truss are includes EN
AW2011-T6 Connect-KIT. |
|
Average Load : kgs / meter |
|
4m |
6m |
8m |
10m |
12m |
14m |
16m |
18m |
 |
Average |
612 |
405 |
254 |
160 |
107 |
77 |
56 |
43 |
|
Total |
2448 |
2430 |
2032 |
1600 |
1284 |
1079 |
896 |
688 |
|
Load / kgs |
2m |
4m |
6m |
8m |
10m |
12m |
14m |
16m |
18m |
 |
2290 |
2070 |
1370 |
1015 |
790 |
650 |
540 |
456 |
390 |
|
|
Be Careful : Never overpass the load
specifications . |
|
