Aluminium
Truss
>>
Quatro 390
Truss
>>
C39H-Series, Quatro Heavy Duty Beam Truss.
With Big Coupler |
|
Available Sizes : 500mm , 1000mm , 1500mm , 2000mm ,
2500mm , 3000mm ,
3500mm , 4000mm . |
|
 |
|
Item No. |
Length. |
Weight. |
|
(CQ-)
|
(mm) |
(kgs) |
|
C39-40105H |
500 |
7.68 |
|
C39-40110H
|
1000 |
10.44 |
|
C39-40120H |
2000 |
15.96 |
|
C39-40130H |
3000 |
20.64 |
|
C39-40140H |
4000 |
25.44 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Description :
Tubes:
Alloy EN AW6082-T6,
Coupler: Alloy EN AW2011-T6
Side : 390 x 390mm,
Long : 500mm to 4000mm,
Main Tube : Ø50 x
3mm,
Brace Tube : Ø25 x 2mm. |

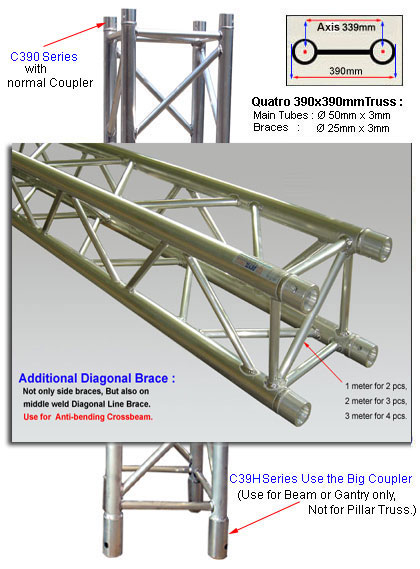

Additional Diagonal
Brace :
Not only side braces,
But also on middle weld
Diagonal Line Brace. for
Crossbeam Anti-bending.
1
meter for 2 Diagonal
Brace,
2 meter for 3 Diagonal
Brace,
3 meter for 4 Diagonal
Brace,
4 meter for 5 Diagonal
Brace. |
|
|
|
|
