Edge

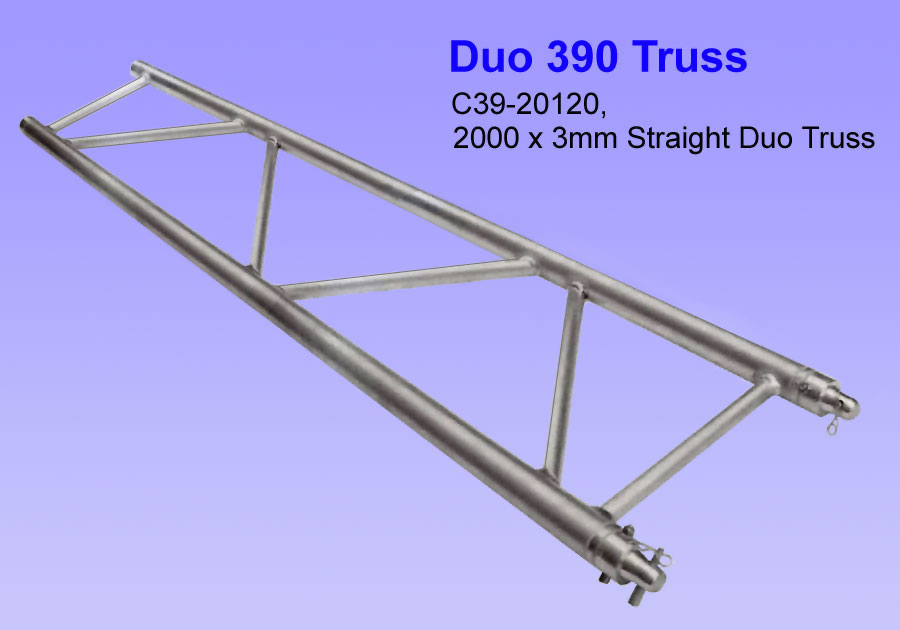

390mm , Duo Truss.
(標準歐規二管排片390桁架) |
|
Main Tubes:
Ø50 x 3mm, Brace: Ø25 x 2mm。Bushing: Ø50
x 10mm with Conical Coupler. |
 |
|
|
|
|
|
Loading
Specification for Duo 390 Truss : |
| |
|
1m |
2m |
3m |
4m |
5m |
6m |
7m |
| |
 |
1278 |
544 |
275 |
140 |
78 |
53 |
.. |
| |
Deflection. (mm) |
0 |
1 |
2 |
2 |
2 |
3 |
.. |
| |
 |
1277 |
900 |
458 |
230.5 |
131.6 |
82 |
.. |
| |
Deflection. (mm) |
0 |
1 |
1 |
1 |
2 |
2 |
.. |
|
|
|
|
|
| |
|
|
| |
| |
|
|
Duo-390
Messestand Trussing :
Die 2 Punkt Traversensystem für normale
Belastungen.
EN AW6082-T6 Legierung.
|
|
|
| |
 |
|
|
|
