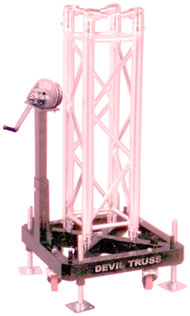

The Elevators >>

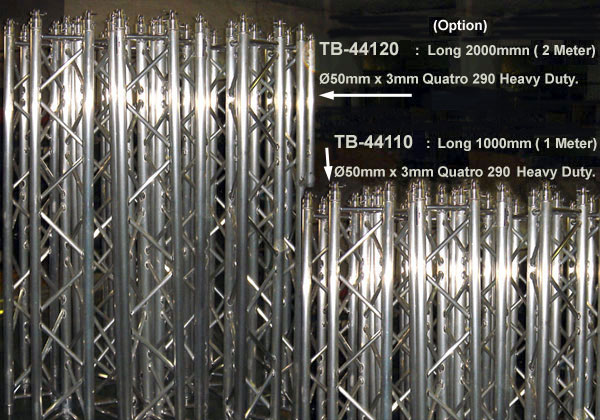

Quatro 290 Heavy Duty
(TB-44110 & TB-44120) |
| ¡@ |
|
|
|
Quatro 290E
Heavy Duty Truss
Weights 9.3kgs / m .
Main
Tubes: Ø 50mm x 3mm , Braces:
Ø 20mm x 2mm |
|
All Length truss are includes EN2011-T6
Connect-KIT. The angles truss are
excluded . |
|
Average
Load : kg / meter |
2m |
3m |
4m |
5m |
6m |
8m |
10m |
12m |
 |
1520 |
1140 |
655 |
470 |
310 |
180 |
115 |
76 |
|
Point Load : kg. |
2m |
3m |
4m |
5m |
6m |
8m |
10m |
12m |
 |
2900 |
2400 |
1550 |
1300 |
1110 |
850 |
580 |
500 |
|
|
