Protocol : USITT DMX-512 |
|

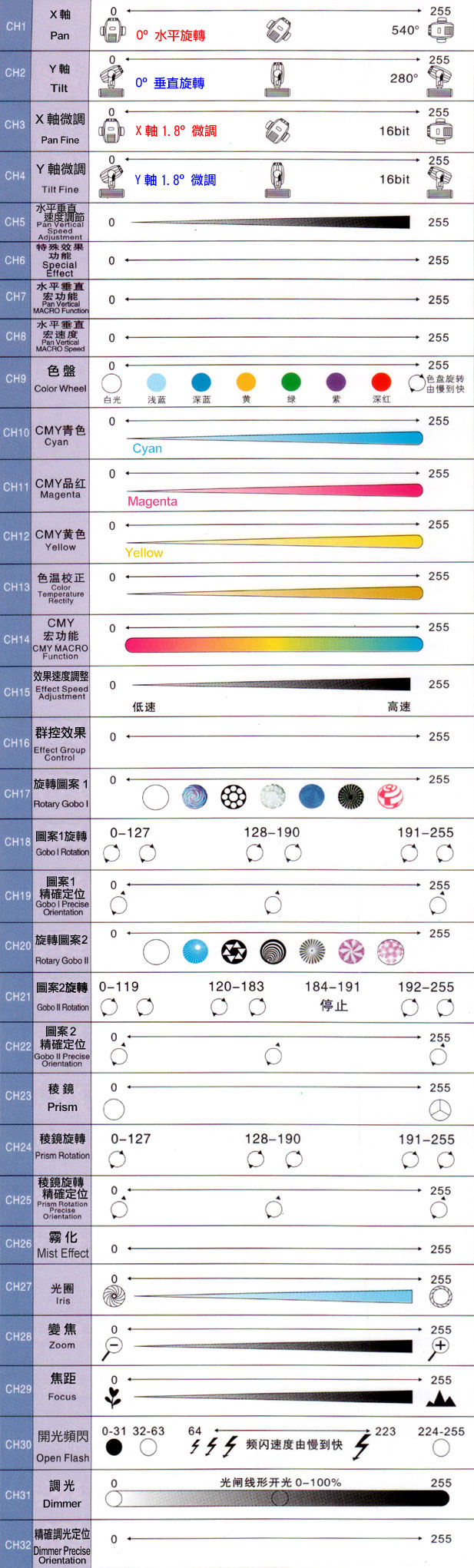

Control Channels: 24 or 32 |
|
Display: Blue / White graphic . |
|
Pan/Tilt resolution: 8 or 16 bit. |
|
Gobo indexing: 8 or 16 bit. |
|
Prism indexing: 8 or 16 bit. |
Data in/out :
Locking 3-pin & 5-pin XLR |
Cyan: 1~100% , Magenta: 1~100%
Yellow: 1~100%, CTO: 0~100% |
Color Wheel:
6 replaceable "SLOP & LOCK" colors + white. |
Color Wheel 1 & Wheel 2
6
rotating, indexed, replaceable, "SLOT &
LOCK" dichroic glass Gobo + White. |
|
Gobo dimension : 37mm |
|
GOBO position adjustment. |
|
Iris: Motorized, stepless. |
Effect Wheel:
4
rotating, indexed, replaceable "SLOT&LOCK"
prism and sffects + white. |
Nebulization effect :
Sepatate, variable. |
Dimmer/Shutter :
Full range dimming and
variable strobe effect. |
|
Focus : 2m ~ infinity. |
|
Zoom : 13 ~ 42º
|
|
Pan: 530º
, Tilt: 280º |
Mounting points:
8 pairs of ¼ turn locks. |
Fixation option :
Pan /Tilt lock mechanism. |
